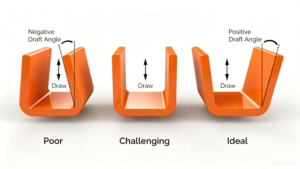

Draft Angle in Injection Molding: The Key Design Feature for Better Moldability
Learn why draft angle is essential in injection molding. Explore recommended draft values, texture considerations, ejection problems, and DFM guidelines for plastic part design.
Designing Living Hinges That Fold Flat and Last
A living hinge may be one of the simplest-looking features in plastic part design. It contains: Just a thin section of plastic connecting two rigid bodies. Yet despite its simplicity, the living hinge is one of the most frequently misdesigned features in injection molding. Many hinge failures occur long before the product reaches the customer. Typical symptoms include: In nearly every case, the root cause can be traced back to geometry, material selection, or molding conditions. For engineers designing consumer products, medical devices, packaging, and industrial enclosures, understanding how living hinges actually behave is critical to achieving long service life. Engineering Problem A living hinge appears deceptively simple. Many designers assume that making a section thinner automatically creates a functional hinge. In reality, hinge performance depends on much more than thickness alone. Common failure modes include: Mechanical Failures Functional Issues Manufacturing Issues Most failures begin because the hinge is being forced to bend in a way that the material was never designed to accommodate. Root Cause: The Hinge Must Flex, Not Stretch A properly designed living hinge works by controlled bending. A poorly designed living hinge forces the material to stretch. This distinction is critical. When plastic stretches: When plastic bends: The goal of living hinge design is therefore not simply to make the hinge thin. The goal is to create a geometry that encourages bending while minimizing tensile strain. This becomes especially important when the hinge must fold completely flat. Engineering Reference Data Recommended Materials for Living Hinges Not all thermoplastics are suitable for living hinges. Some materials tolerate repeated flexing exceptionally well. Others fail almost immediately. Material Living Hinge Performance Polypropylene (PP) Excellent Polyethylene (PE) Good Thermoplastic Elastomer (TPE) Application Dependent Nylon (PA) Limited ABS Poor Polycarbonate (PC) Poor POM Poor Polypropylene remains the industry standard because its molecular structure allows repeated flexing without rapid fatigue failure. For high-cycle hinges, PP is almost always the first material considered. Typical Living Hinge Thickness The most common design mistake is making the hinge too thick. Material Typical Hinge Thickness PP 0.20–0.50 mm PE 0.25–0.50 mm For most molded polypropylene hinges: 0.25–0.40 mm is a practical starting range. Thicker hinges often resist bending and increase stress. Thinner hinges may become difficult to fill consistently. Hinge Radius Recommendations Sharp transitions are one of the primary causes of hinge failure. Recommended starting values: Feature Typical Value Hinge Root Radius 0.25–0.50 mm Transition Radius As large as practical Sharp Corners Avoid Smooth transitions distribute stress more effectively and improve fatigue life. Living Hinge Length Guidelines Many failures occur because the hinge is too short. Hinge Length Expected Behavior Short High stress concentration Medium Balanced performance Longer Lower strain during bending A longer hinge generally reduces strain for the same rotation angle. This often improves cycle life significantly. Gate Placement Considerations Material flow direction strongly influences hinge performance. Preferred practice: Flow through the hinge rather than across the hinge whenever possible. This aligns polymer molecules with the flex direction. Benefits include: Poor gate placement can reduce hinge durability dramatically, even when geometry appears correct. Why Fold-Flat Hinges Are Different Many living hinges only need to open and close. Fold-flat hinges are more demanding. To achieve 180° folding: One common solution is incorporating a double-radius hinge profile. Instead of concentrating bending at a single point, the hinge distributes strain across a broader region. Benefits include: This is one reason high-quality consumer products often use more sophisticated hinge geometry than basic packaging applications. Mold Engineering Perspective When reviewing a living hinge design, mold engineers rarely ask: “Will the hinge bend?” Almost any thin section will bend. Instead, we ask: The hinge itself is usually not the problem. The surrounding geometry often determines whether the hinge succeeds or fails. Factors such as: frequently influence performance more than the hinge thickness itself. Common Living Hinge Design Mistakes Mistake #1: Using the Wrong Material ABS and PC may work for rigid components but are poor choices for high-cycle living hinges. Mistake #2: Making the Hinge Too Thick A thicker hinge often increases stress rather than strength. Mistake #3: Sharp Transitions Sharp corners create stress concentrations and early cracking. Mistake #4: Poor Gate Placement Flow orientation strongly affects fatigue performance. Mistake #5: Testing Only Once A hinge that survives initial assembly may still fail after repeated cycling. Lifecycle testing is essential. DFM Quick Review Checklist: Living Hinges 1. Material Selection □ Is PP being used whenever possible? □ Has fatigue performance been evaluated? □ Is the resin grade suitable for hinge applications? □ Have environmental conditions been considered? 2. Hinge Geometry □ Is hinge thickness between 0.20–0.50 mm? □ Are transition radii included? □ Are sharp corners eliminated? □ Is hinge length sufficient? 3. Flow and Gating □ Does material flow through the hinge? □ Are weld lines avoided? □ Is filling balanced? □ Has molecular orientation been considered? 4. Fold-Flat Performance □ Is 180° rotation required? □ Has spring-back been evaluated? □ Is strain distributed across the hinge? □ Has folding force been tested? 5. Durability Validation □ Has cycle testing been completed? □ Has whitening been evaluated? □ Has crack initiation been inspected? □ Has long-term performance been verified? Final Thoughts Living hinges are often viewed as simple features. In reality, they represent a careful balance between: A successful hinge is not simply one that bends. It is one that bends repeatedly without failure. When designed correctly, a living hinge can eliminate hardware, reduce assembly costs, simplify manufacturing, and survive thousands—or even millions—of cycles. But achieving that performance requires more than making a thin section. It requires designing the hinge to flex, not stretch.
Crush Ribs: Solving Tolerance Problems Without Tight Tolerances
One of the most common challenges in plastic product design is creating a reliable press fit. Consider a typical assembly: At first glance, the solution appears straightforward: Design the mating dimensions with a tight tolerance and create an interference fit. In practice, however, injection molding does not always favor this approach. Shrinkage variation, molding tolerances, material behavior, and draft requirements can make a perfectly dimensioned interference fit difficult to achieve consistently. Crush ribs provide a more robust solution by concentrating contact at a few controlled locations rather than across an entire surface. For this reason, experienced mold designers often use crush ribs instead of relying solely on dimensional interference. Engineering Problem Traditional press-fit designs frequently create conflicts between assembly requirements and moldability. Typical symptoms include: Assembly Issues Molding Issues Manufacturing Issues The challenge becomes even greater when a molded hole requires draft but the assembly requires a straight-sided fit. This conflict is one of the primary reasons crush ribs are used in molded products. Root Cause: Draft Helps Molding but Hurts Press Fits Most molded holes require draft. Without draft: From a mold engineer’s perspective, adding draft is almost always desirable. However, from an assembly perspective, draft introduces clearance. Consider a D-shaped shaft fitting into a molded D-hole. Adding draft improves mold release, but it may also introduce: This creates a classic design conflict: The geometry that improves molding performance may reduce assembly performance. Engineering Reference Data Typical Crush Rib Applications Crush ribs are commonly used in: Application Purpose Shaft-to-Hub Assembly Reduce rotational play Bearing Retention Controlled interference Plastic-to-Plastic Press Fits Compensate for tolerance variation Electronic Enclosures Component positioning Insert Retention Improve assembly consistency Snap Assemblies Alignment and preload Typical Crush Rib Geometry While dimensions depend on material and application, common starting guidelines include: Feature Typical Guideline Number of Ribs 3–6 equally spaced Rib Height 0.15–0.40 mm above nominal surface Rib Width 0.25–0.75 mm Contact Area Minimize contact width Draft on Main Bore 0.5°–2° per side Draft on Rib Contact Surface Often reduced or eliminated The goal is not maximum interference. The goal is controlled deformation during assembly. Recommended Rib Placement For cylindrical press fits: Diameter Range Typical Rib Count <10 mm 3 ribs 10–25 mm 3–4 ribs 25–50 mm 4–6 ribs >50 mm Application dependent Three equally spaced ribs are often sufficient to self-center a mating component while maintaining consistent retention. Community discussions frequently highlight this self-centering behavior as one of the major advantages of crush ribs. Traditional vs. Machinable Crush Ribs Historically, crush ribs were designed with sharp V-shaped profiles. Design Type Tooling Impact Sharp V Rib Often requires EDM Rounded Crush Rib Can be CNC machined Full-Radius Crush Rib Lowest tooling complexity Sharp V-shaped ribs create effective contact points but often require EDM or additional tooling operations. Rounded rib profiles can usually be machined directly with standard end mills, reducing mold complexity and manufacturing cost. Mold Engineering Perspective When reviewing a press-fit design, we rarely start by asking: “How tight should the fit be?” Instead, we ask: “How much of the surface actually needs to touch?” Many designers attempt to control fit by increasing dimensional precision. Unfortunately, tighter tolerances often increase manufacturing cost without guaranteeing better assembly performance. Crush ribs take a different approach. Rather than creating interference across an entire bore surface, they create interference only at selected locations. This provides several advantages: From a tooling perspective, crush ribs are often a smarter solution than demanding unrealistic molding tolerances. Why Rounded Crush Ribs Are Often Better One of the most overlooked aspects of crush rib design is tooling manufacturability. Many traditional design guides illustrate sharp V-shaped ribs. The problem is that sharp internal features are difficult to machine. They often require: A rounded crush rib generated by a standard end mill often delivers nearly identical assembly performance while simplifying mold construction. This approach allows the primary bore to maintain draft while preserving localized interference at the rib contact points. As a result, rounded crush ribs are frequently preferred in production tooling. DFM Quick Review Checklist: Crush Rib Design 1. Assembly Function □ Is a full-surface interference fit truly necessary? □ Can crush ribs achieve the same retention? □ Is self-centering required? □ Is rotational alignment critical? 2. Rib Geometry □ Are 3–6 ribs used instead of continuous interference? □ Is rib height minimized? □ Is contact area controlled? □ Are ribs evenly distributed? 3. Moldability □ Does the main bore include draft? □ Can the part eject cleanly? □ Is core stress minimized? □ Has shrinkage been considered? 4. Tooling Considerations □ Can the ribs be machined directly? □ Is EDM required? □ Would a rounded profile reduce tooling cost? □ Is future maintenance considered? 5. Production Validation □ Has insertion force been tested? □ Has retention force been measured? □ Has tolerance stack-up been evaluated? □ Has assembly repeatability been verified? Final Thoughts Crush ribs are often viewed as small design details. In reality, they solve one of the most difficult challenges in molded product design: Balancing moldability with assembly performance. Instead of fighting draft requirements or demanding tighter molding tolerances, crush ribs allow designers to localize interference exactly where it is needed. The result is often: For many press-fit applications, the most reliable fit is not achieved through tighter dimensions. It is achieved through smarter geometry.
